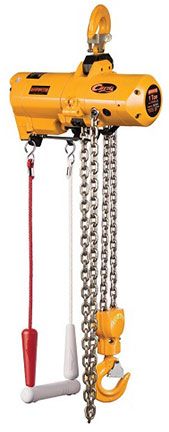

Air Hoist, TCS Cheetah with Pull Cord Control, Capacities 1/4-1 Ton

Air Hoist, TCS Cheetah has extremely fast and uniquely adjustable lifting and lowering speeds. These hoists are lightweight, compact and have outstanding feathering ability making them a perfect fit for fast-paced assembly line and workstation crane applications.

TCS Cheetah air hoist is available in 1/4, 1/2 and 1 Ton capacities with either pendant or cord control. These hoists are extremely fast and have uniquely adjustable lifting and lowering speeds. They are light weight, compact and have outstanding feathering ability which make TCS air hoists a perfect fit for fast-paced assembly line and workstation crane applications.

Features:

• Air hoist has capacities 1/4-1 Ton, speed 121/54 feet per minute
• Exceptional high speed lifting performance
• Very fine feathering control allows precise load positioning
• Pendant & pull cord controls available
• Spring-loaded vane motor and pilot air control allow extremely fine feathering ability
• Unlimited duty cycle for severe applications
• Adjustable lifting and lowering speeds increase production capabilities
• Enclosed heavy-duty disc brake provides reliable braking action
• Up full load air consumption is 64/71 (cfm @ 90 psi)
• Net weight is 40-53 lbs.
• Chain container included with hoist
• FINANCING AVAILABLE FOR HOISTS PRICED AT $3,800 AND ABOVE

Dependability:

• Disc brake for reliable load support
• Supported by a full line of replacement parts
• Suitable for extremely harsh environments

View all hoists: Air Hoists, Electric Hoists, Lever Hoists, Manual Chain Hoists

For additional information on this or Harrington Food Grade/AL Hoists, contact us at 800-242-3477 or email us at csr@wiscolift.com.
